GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial
GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

大画像 :  GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

商品の詳細:
起源の場所: 中国
ブランド名: OEM/ ODM/ YUEXIANKE
証明: UL/ CE/ ETL/ ROHS/ ANATEL
モデル番号: GYTW
お支払配送条件:
最小注文数量: 1000メートル
価格: Negotiation
パッケージの詳細: 1000メートル
受渡し時間: 3-7Work日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram
供給の能力: 100000メートル/日

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 4 - 48 Cores For Duct / Aerial

説明
モデルいいえ: GYXTW メンバーを増強して下さい:: 金属
カバー材料:: PE を使用して:: 空気
緩い管:: 単管ケーブル 水黒くするテープ:: はい
タイプ:: 単モード 繊維の計算:: 2-144中心

GYXTW 9 / 125 OS2 Fiber Optic Single Mode Cable 2 - 48 Cores For Duct / Aerial



Product Description

  • GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
  • We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
  • Both single mode type and multimode types are available.
  • Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

Specification



Recommended laying methods Aerial
Allpicable fields Long distance communication and LAN
Properties Water proofing layer providing strong water resistance peformance
Steel tape with PE outer enhancing anti-crush and tensile property of cable

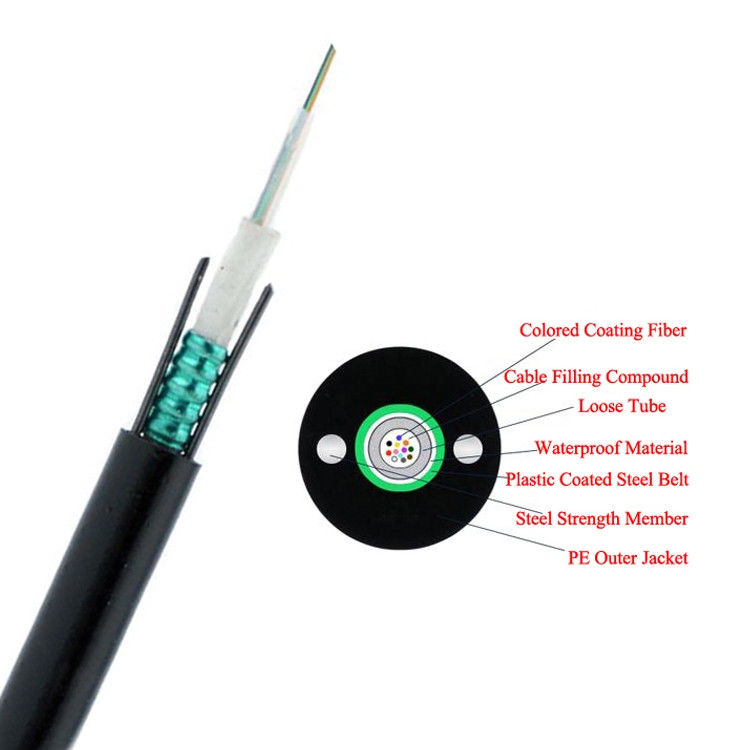

Structure characters Water proofing layer between the steel tape and cable core
Double coated PE corrugated steel tape under PE sheath
Parallel double steel wires as strengthen member

We can design oval cross section and non-metallic structure on

requirement,e.g:GYXTEW,GYFXTW,GYFXTEW etc.



Technicial Data



Fiber range   Cable weight (kg/km) Min.bending radius(mm) Allowable tension(N) Max.crus loading force(N/1000mm)
Cableouter diameter static dynamic short term long term short term long term
2-12 8.9 90 10times cable diameter 20times cable diameter 1500 600 1000 300
12-24 10.2 110



Features



  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
  • Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to layOperating Temperature: -40 ~ +60 °C
